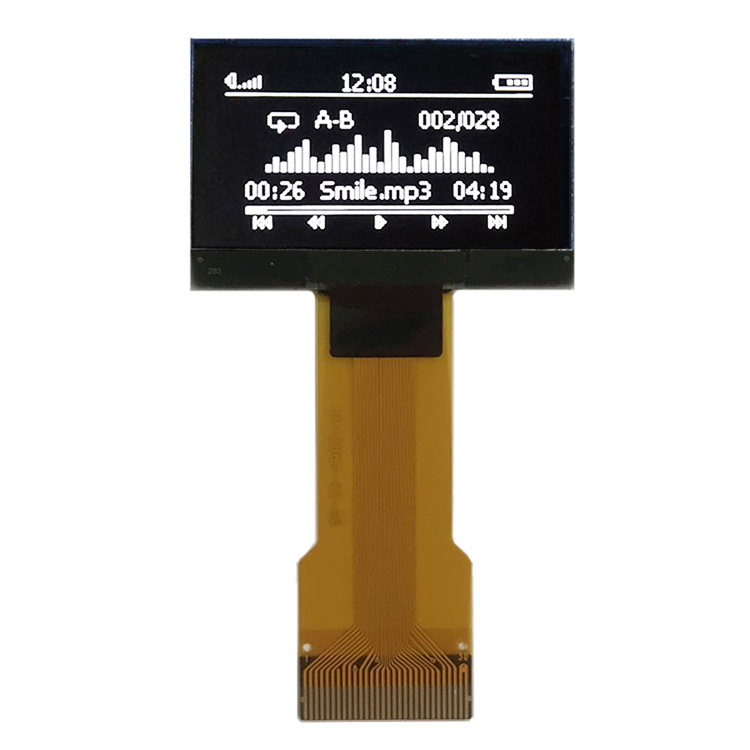

1.3 Inch OLED Display 128x64 OLED Display Module 40mm FPC SH1106 White/Blue Light 30 PIN OLED Screen
Description
Enrich can supply connector type 1.3 inch 128*64 resolution white or blue colour OLED display panel connector type with 40mm long FPC cable 30 PIN and SH1106G driver IC for smart device.
Details Images

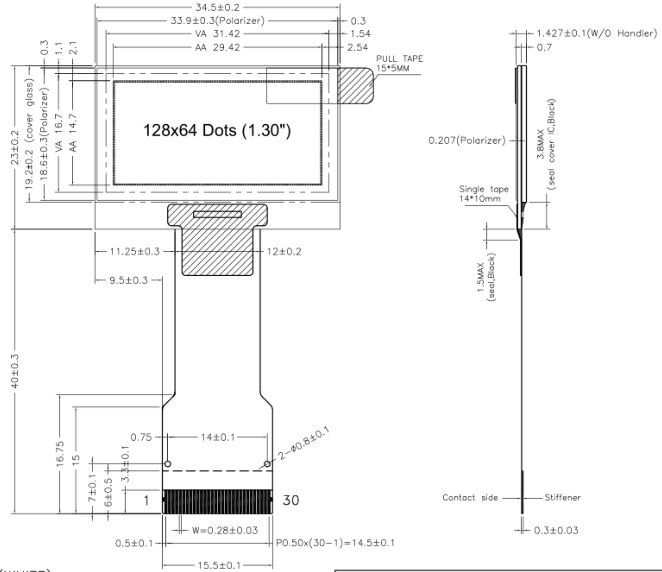

Physical Size
Specification
|
1.3 Inch OLED Display 128x64 OLED Display Module 40mm FPC SH1106 White/Blue Light 30 PIN OLED Screen |
|
|
Size |
1.3” |
|
Control IC |
SH1106 |
|
Resolution |
128*64 |
|
Physical Dimensions |
mm |
|
Viewing Area |
mm |
|
Interface |
6800/8080 interface, 4 wire serial interface, I2C |
|
PIN Number |
30 PIN |
|
Display Color |
White/Blue |
|
Operating Temperature |
-40 to + 85 |
|
Operating Voltage |
3.3V |
|
Module Weight |
4g |
|
MOQ |
2 Piece |
|
Test Platform |
1>51 2>STM32 3>STM8 4>Arduino |
Product Applications
Intelligent Water Mater
Electronic Measure
Medical Facility Telecome Equipment
Smart Wearable Device
