64x128 OLED Display, 0.96 Inch OLED Display

Online Inquiry Email Us

Details

Description

This display is having the module dimension of 14 x 28 mm and AA size of 10.86 x 21.74 mm. Customers can upgrade your current applications from traditional STN displays to OLED displays since Enrich provides a very wide range of dot pixel formats OLED solutions.

Specification

64x128 OLED Display, 0.96 Inch OLED Display
Resolution	64*128
Module Size	14 (W) x 43.8 (H) x 1.227 (D) mm
Panel Size	14 (W) x 28 (H) mm
Active Area	10.86 (W) x 21.74 (H) mm
Dot Size	0.15 (W) x 0.15 (H) mm 2
Dot Pitch	0.17 (W) x 0.17 (H) mm 2
Driver IC	SH1107
Color	white
Viewing Angle	160°
Interface	4-wire serial peripheral interface, I 2 C Interface
High contrast	2000:1
Operating Temperature	-40 to 70°C
RoHS Compliant	Yes

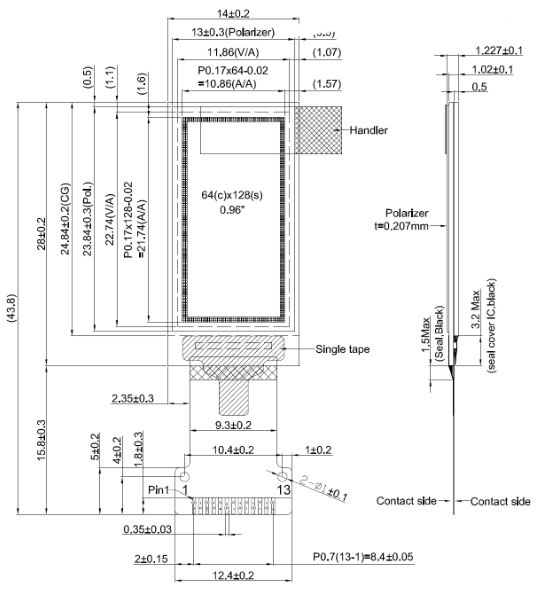

OLED Drawing

OLED Application

Enrich Display Series are suitable for wall / meter devices, home applications, POS system, Cloud/IoT system, handheld instruments, intelligent technology devices, energy systems, automotive, communication systems, medical instrument, etc.
