1.54” 128*64 OLED Display
Super popular small OLED! This white-on-black OLED is perfect for display panels that have little space and need a high resolution 128x64 graphic display. With a 42.04(W)x27.22(H)x1.41(D) mm, this is one of the smallest OLEDs available.
Driver SPD0301ZD or compatible controller communicates with 6800/8080 interface, 4 wire serial interface, I2C.
The FPC mates with a 24-pin FPC connector, which can be processed through your normal SMT reflow.
OLED Details
|
1.54” 128*64 OLED Display |
|
|
Size |
1.54” |
|
SSD1331 |
SPD0301ZD |
|
Resolution |
128)×64 |
|
Panel Size |
42.04(W)x27.22(H)x1.41(D) (mm) |
|
View Area |
37.052 (W) x 19.516(H) (mm) |
|
Active Area |
35.052(W) x17.516(H) (mm) |
|
Interface |
6800/8080 interface, 4 wire serial interface, I2C |
|
PIN Number |
24 PIN |
|
Display Color |
White |
|
Module Weight |
TBD |
|
MOQ |
1 Piece |
|
Test Platform |
1>51 2>STM32 3>STM8 4>Arduino |
|
Please contact me for questions regarding this product. |
|

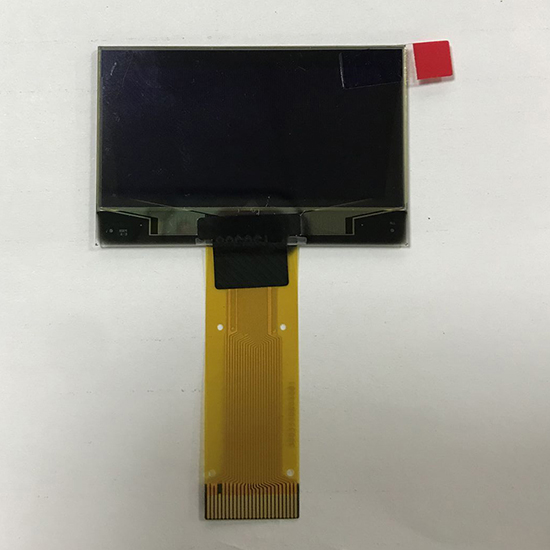

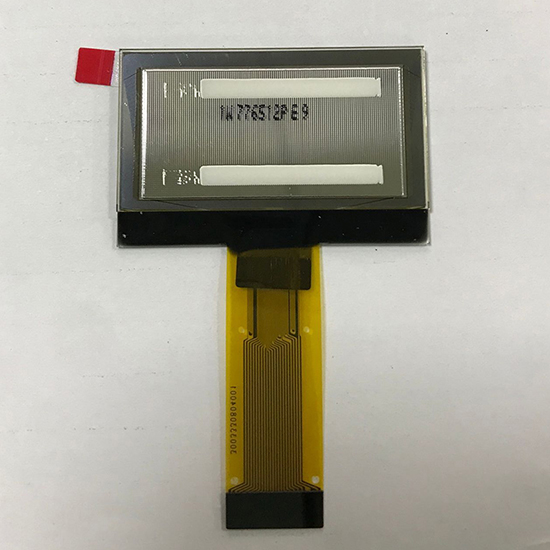

Image Details
OLED Applications
-Meter
-Ammeter
-Instrument tuner
-External hard disk
- Printers
-Wearable devices
-Medical & health equipment
-3D & Shutter

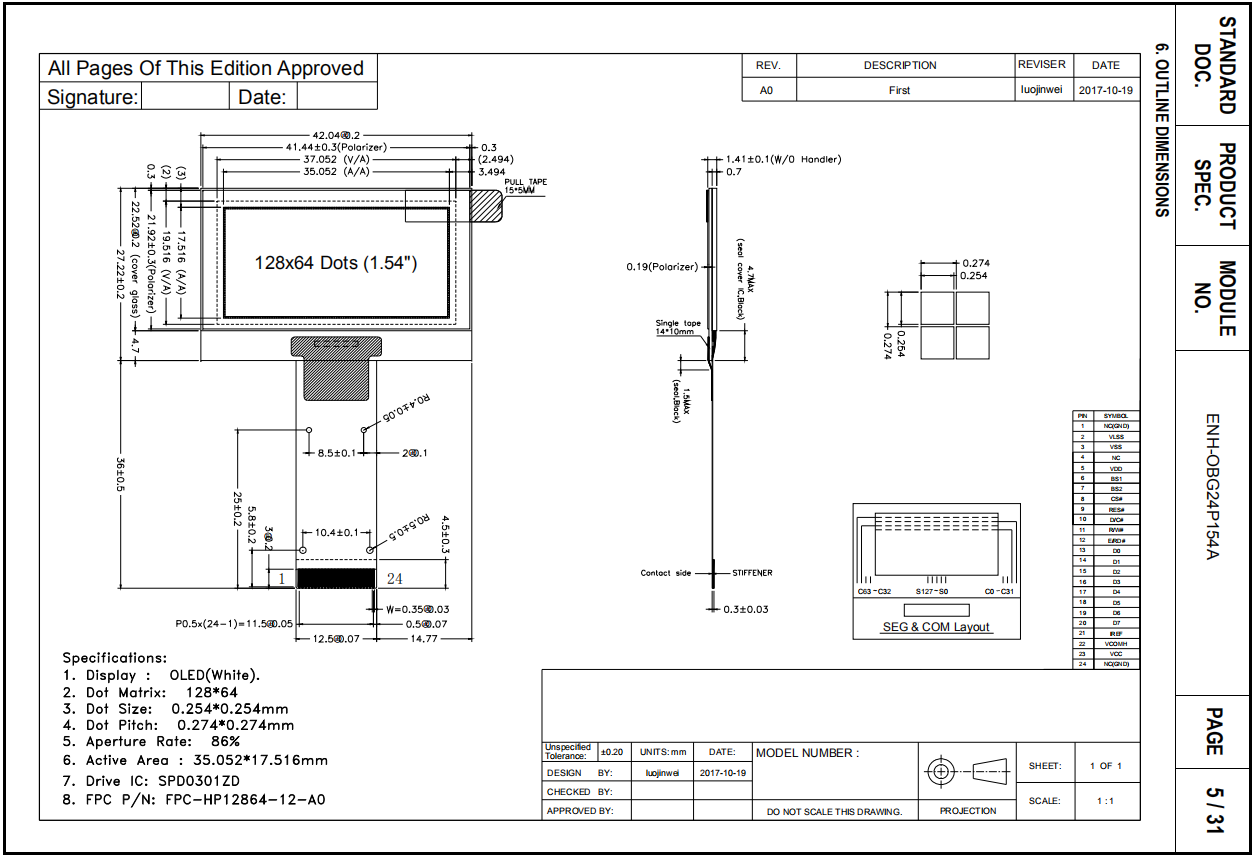

Physical Size
FAQ
+How to place an order ?
Please send us your purchase order by Email or through Whats APP directly, or ask us to send you one invoice.
+How can I get the data sheet ?
If you need the standard OLED, the datasheet will be sent to request after getting your inquiry.
+How long can I get the sample?
Samples will be ready for deliver in 5-7 days.
+Are you manufacture or trade company?
We are the manufacture specialized in TN, STN, FSTN, HTN, TFT products over 6 years.
