0.71 Inch White on Black Small OLED Display
Description
Power consumption for OLED display modules is lower than any other display technology, as the image requires refreshing only when content changes. These OLED display modules are ideal for applications where power is severely constrained. The high contrast ratio and anti-glare surface makes an OLED display module easy to read in bright sunlight.
Features
|
0.71 Inch White on Black Small OLED Display |
|
|
Resolution |
48*64 |
|
Outline Size |
18.9*22 mm |
|
Viewing Area |
12.14*16.3 mm |
|
Active Area |
10.54*14.7 mm |
|
Interface |
SPI |
|
Color |
White |
|
Driver IC |
SSD1306BZ |
|
Display Mode |
Passive Matrix |
|
Viewing Angle |
ALL |
|
RoHS Compliant |
Yes |

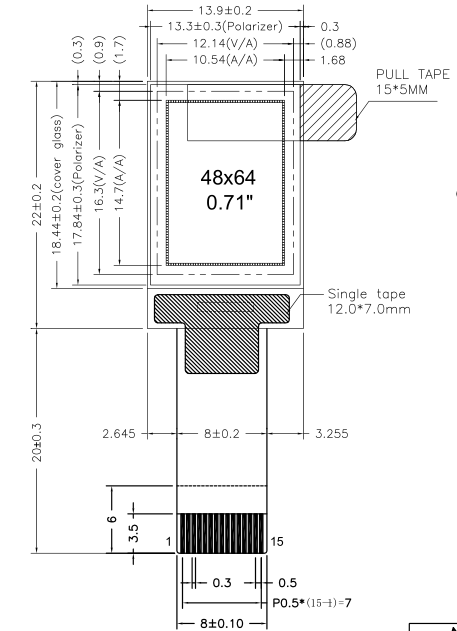

LCD Drawing

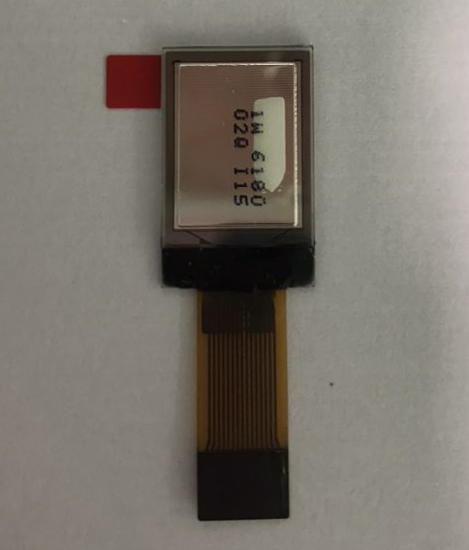

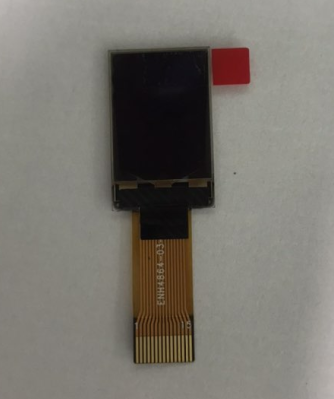

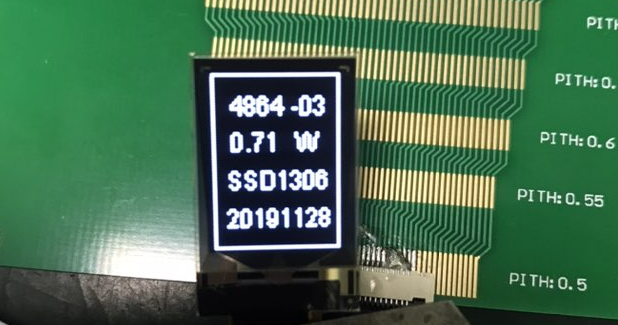

Image Details
LCD Applications
-Household Appliances
-Medical Device
-A Number of Areas of Financial POS Machine
-Smart Wearable Device
-Instrumentation
-Automobile
-Measuring Equipments
-Digital Clocks & Watches
-Financial Machines
-...
FAQ
1. How to contact us?
Send your inquiry details for us please.
2. Do you accept customized LCD display?
Yes, we can offer custom solution if standard products couldn’t meet clients’ requirements. Besides, we also will accept customized LCD display.
3. What about the delivery time?
The LCD products need 5-6 weeks to be made after receive your payment.
4.What is the MOQ?
Generally if you choose the different products, our minimum order quantity also will be different.
