China Supply 0.91 Inch OLED Display

Description

128x32 small graphic white monochrome OLED display. Have limited space but need a high resolution, easily readable display? This little OLED could be a perfect display solution for you.

Solomon Systech SSD1306 or compatible controller communicates with I2C, SPI.

Key Features

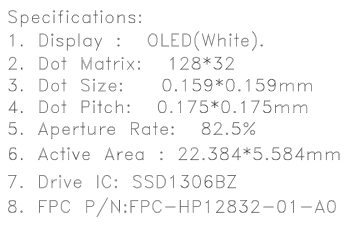

FEATURES:

(1) Display Color: WHITE

(2) Dot Matrix: 128x32

(3) Drive IC: SSD1306BZ

(4) Viewing Angle: 160°

(5) Aperture rate: 82.5%

(6) Interface: I2C

MACHANICAL SPECIFICATIONS:

MODULE SIZE: 30.0(W)x11.5(H)x1.227(D) mm

VIEWING AREA : 24.384 (W) x 7.584(H) mm

ACTIVE AREA:  22.384 (W) x5.584(H) mm

DOT SIZE: 0.159(W) x0.159(H) mm

DOT PITCH: 0.175(W) x0.175 (H) mm

ASSY.TYPE: COG

WEIGHT: TBD

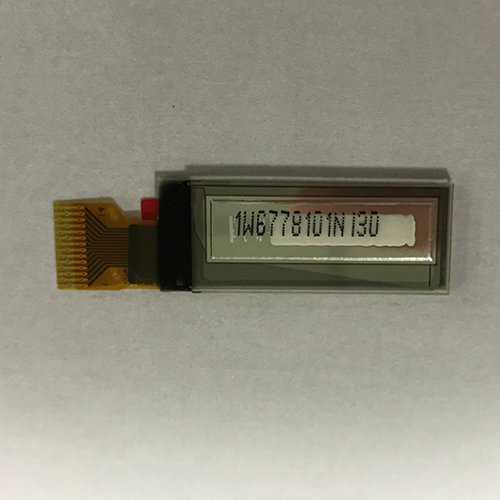

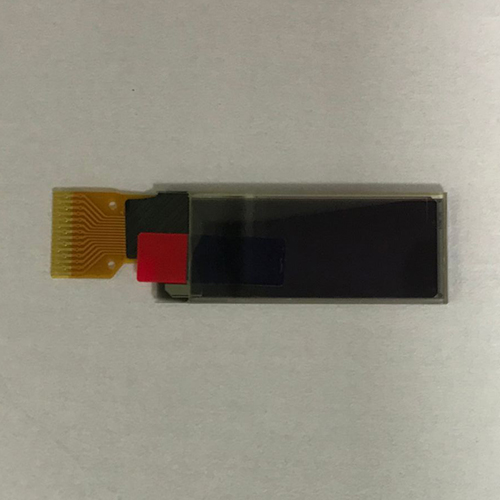

Detailed Image

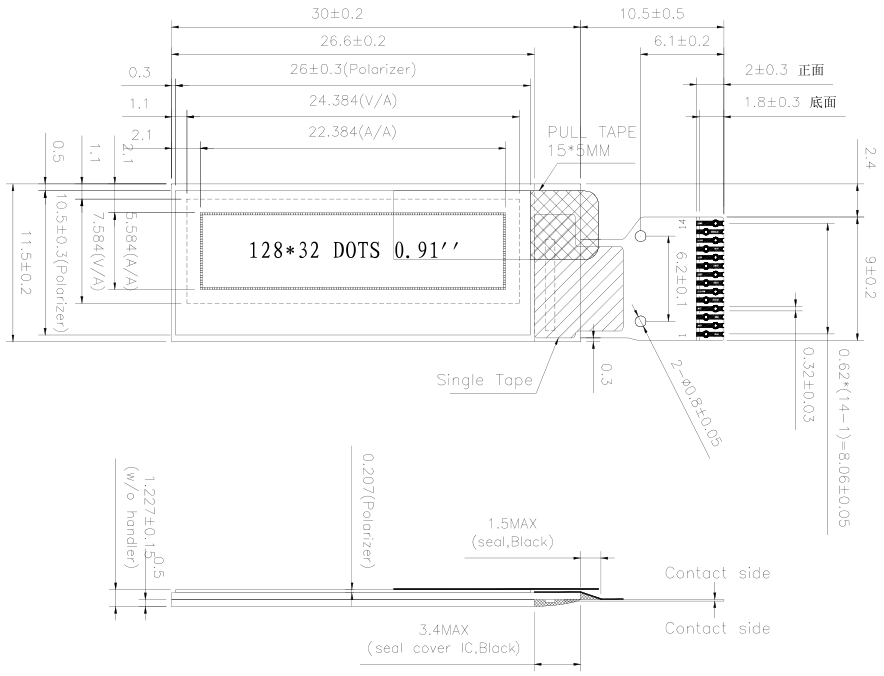

Physical Size

FAQ

# Do you have MOQ?

A: No, we do not have MOQ.

# When can I get the items?

A: It takes 5-7 working days for shipping samples. eneral speaking, all depend on order quantity and we will arrange to make production as soon as possible when order confirmed.

# May I get some discount?

A: Sure. Discount is available for large order quantity.
