7 Segment LCD Display with LED Backlight

7 Segment LCD Display with LED Backlight
  • 7 Segment LCD Display with LED Backlight
  • 7 Segment LCD Display with LED Backlight
  • 7 Segment LCD Display with LED Backlight
  • 7 Segment LCD Display with LED Backlight

7 Segment LCD Display with LED Backlight



Details

Description



Download our Crystalfontz LCD Software. We provide software for you to test many types of LCDs including character displays and graphic displays. All our LCD software is free to use and all our LCD displays come with open-source demonstration code.



Features

7 Segment LCD Display with LED Backlight

Outline Size

40x30 mm

View Area

37x23 mm

Connector

Metal PIN

Operating Temperature

-10 to + 60

Storage Temperature

-20 to + 70

Operating Voltage

3V

Display Mode

FSTN/Transflective/Positive

View Angle

6 oclock

Backlight

White LED

Applications

E-cigarette, white goods, water, sewing machine and so on.

Note: Please contact us for data sheet.

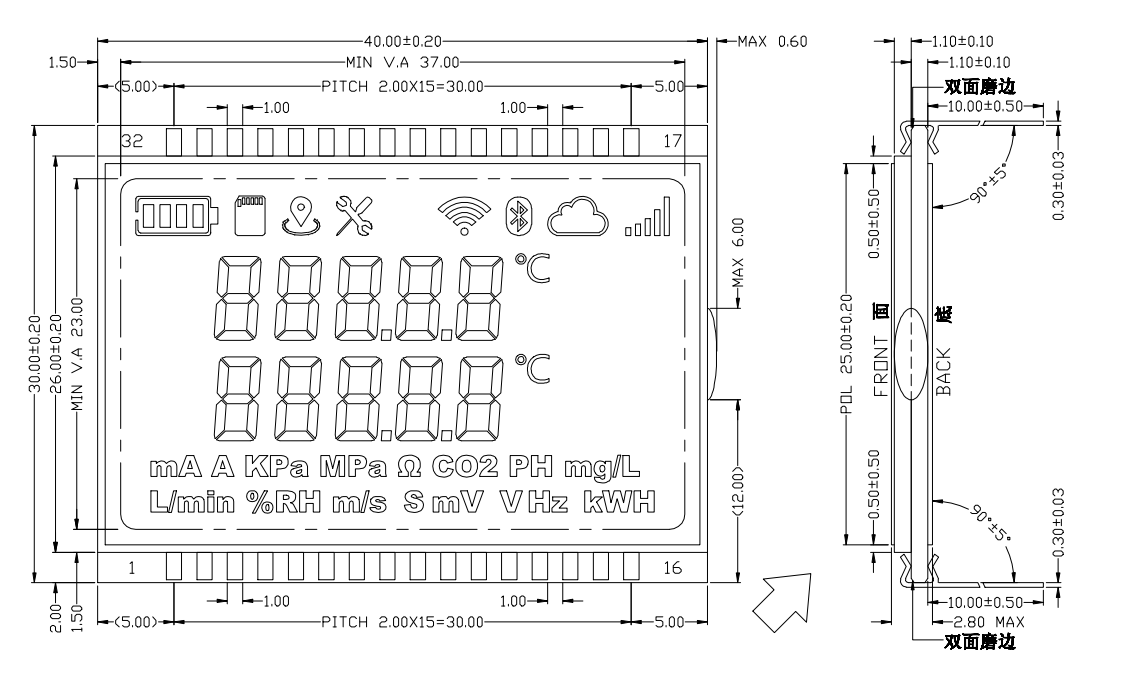

Physical Size




Image Details




FAQ

1.Q:Can I place a sample order?

A:Yes. You are perfectly welcome to place a sample order to test the quality of our products.

2.Q:How long can I receive the samples?

A:Normally, the sample needs 3 to 5 days, customized a sample needs 14 to 20 days.

3.Q:How can I get the specification?

A:We will send you the specification immediately when we have receive your enquiry.

4.Q:How to understand NO MOQ?

A:The quantity of the order need to adapt to constantly changing market conditions. Besides, a single piece also is a good order for us.

Q5.Why do you choose us?

A:We are professional LCD module manufacturer in Shenzhen. We can provide high quality but low price LCD module.
