VA Transmissive Segment LCD Display with Back Light

VA Transmissive Segment LCD Display with Back Light
  • VA Transmissive Segment LCD Display with Back Light
  • VA Transmissive Segment LCD Display with Back Light
  • VA Transmissive Segment LCD Display with Back Light
  • VA Transmissive Segment LCD Display with Back Light

VA Transmissive Segment LCD Display with Back Light



Details

Description



The display is a critical component in any project, impacting every aspect of your design. In addition, the display is the most prominent and visible component of any finished product, and as such, must be evaluated and approved by not only the mechanical design team, but marketing and management as well.



Our ready-to-use development kits provide you with a plug and play solution to explore all aspects of a display. All development kits ship loaded with demonstration scripts to provide a complete working example of the displays. You can easily create your own demonstrations by loading your own scripts and images onto the included microSD card, allowing you to create your own test screens, or load mockups of user interfaces to show how a display will function in your product.

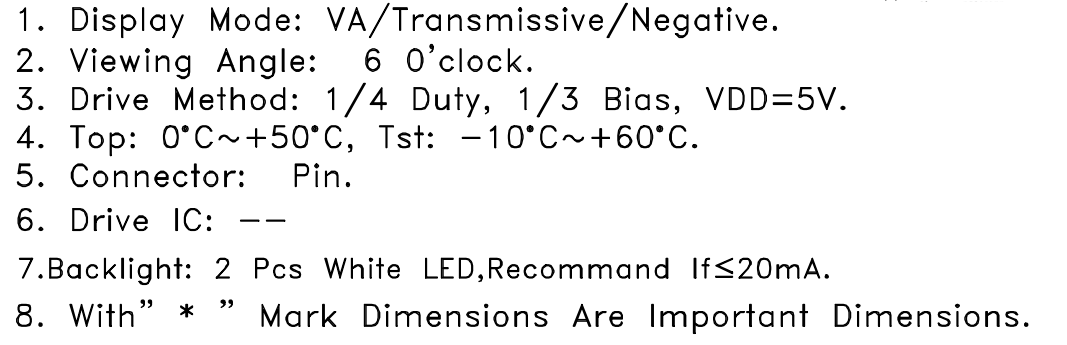

General Specification

VA Transmissive Segment LCD Display with Back Light

Outline Size

52*34 mm

Viewing Area

49*27 mm

Connector

Metal PIN

Driver IC

---

Backlight

WLED

Display Mode

VA,Transmissive, Negative

Viewing Angle

6:00

Drive Method

1/4 duty, 1/3 bias

Top

-0℃ TO + 50℃

Tst

-10℃ TO + 60℃

RoHS Compliant

Yes

Please contact us for datasheet and programming.

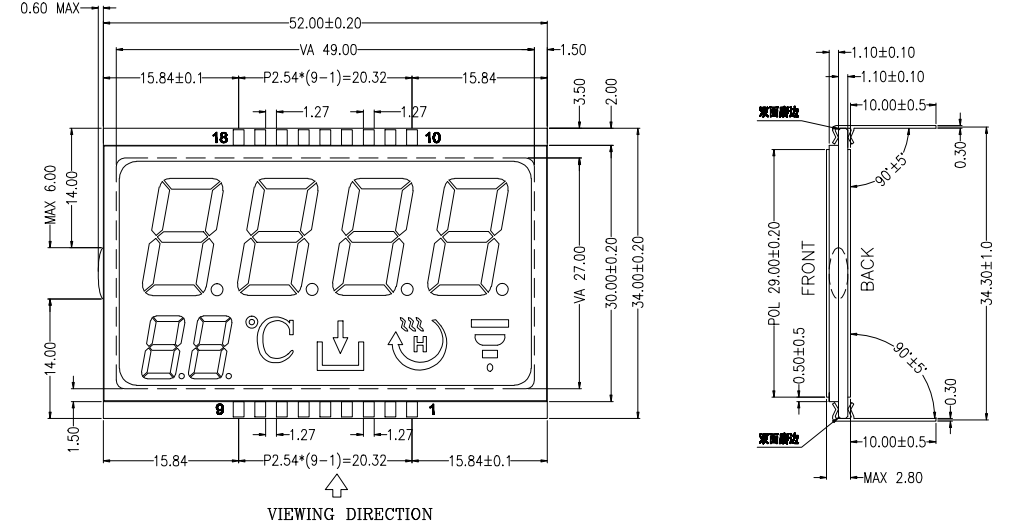

LCD drawing

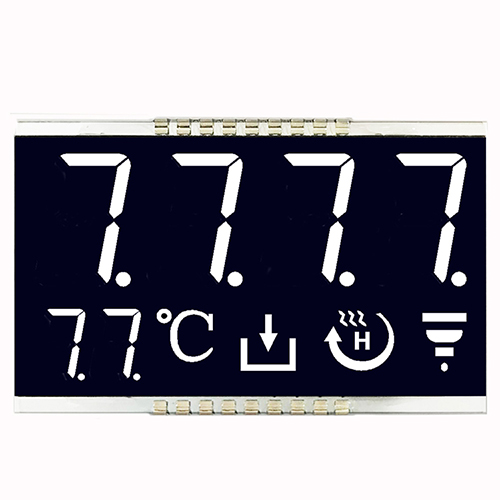

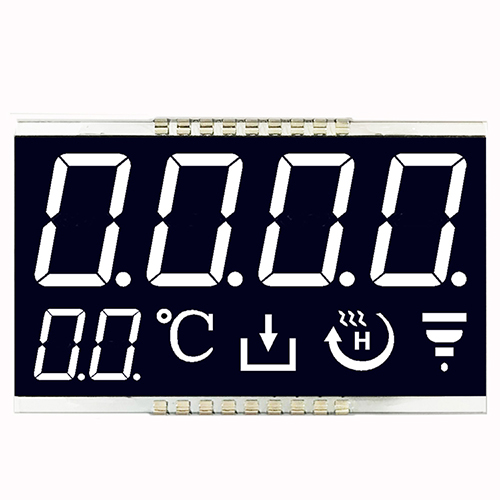

Image Details

FAQ

1.Why choose Enrich?

1) Enough industrial experience and involved main markets all over the world.

2) Precise and advanced equipment.



2.What can we do for you?

Please share with us your requirements.



3. What is the LCD application?

House hold device, smart wearable device, medical electronics, instrumentation, etc.



More About Us

Shenzhen Enrich Electronics Co., Ltd is an export-oriented high-tech enterprise, specializing in the customizing of TN, HTN, STN, FSTN and other types of LCD for COG and COB module.



We produce LCD and LCM more than 5 years,our products include Monochrome COG and COB LCD Module, TFT Module, OLED Module, etc.



Our products apply for medical electronics, instrumentation,smart wearable device, a number of areas of financial POS machine, U shield, CATV, ETC electronic tag and home appliances products, etc.



As a supplier of international renowned enterprises, most pf our products are exported to Europe, America and other countries.
