Customized Segment LCD Screen LCD Display Module
Description
This segment LCD display module (ENH-SS504407-01-NTPTGN) is thin, light, low-power, without LED backlit. This display is visible in all lighting situations, from darkness, normal office lighting, and even bright sunlight, making it an excellent sunlight/daylight readable LCD solution.
This segment LCD is a transmissive, positive-mode display, Turning the backlight off will further reduce the already super-low power consumption. This display is well suited for compact hand-held devices, or any application where a lot of display in a very small area is needed.

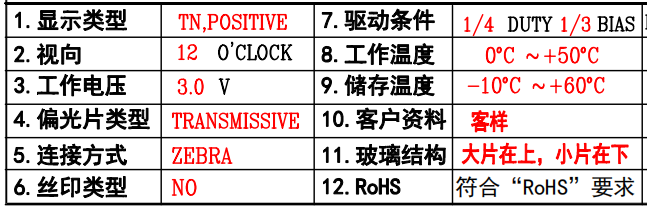

Details of LCD
Customized Segment LCD Screen LCD Display Module |
|
Outline Size |
64x34 mm |
Viewing Area |
61x29 mm |
Display Mode |
TN, Positive |
Viewing Angle |
12:00 |
Operating Voltage |
3V |
Polariod Type |
Transmissive |
Connector |
ZEBRA |
Drive Method |
1/96 duty, 1/10 bias |
Top |
0℃ TO + 50℃ |
Tst |
-10℃ TO + 60℃ |
RoHS Compliant |
Yes |
Please contact us for datasheet and programming. |

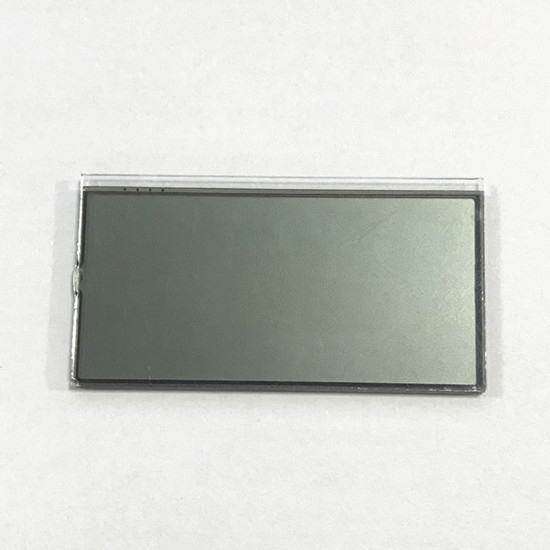

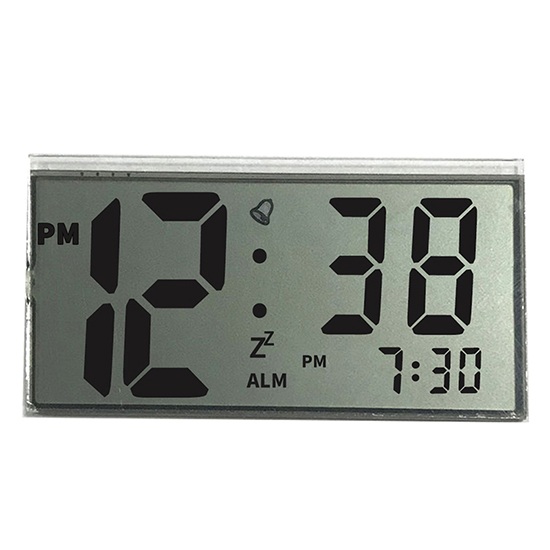

LCD Images

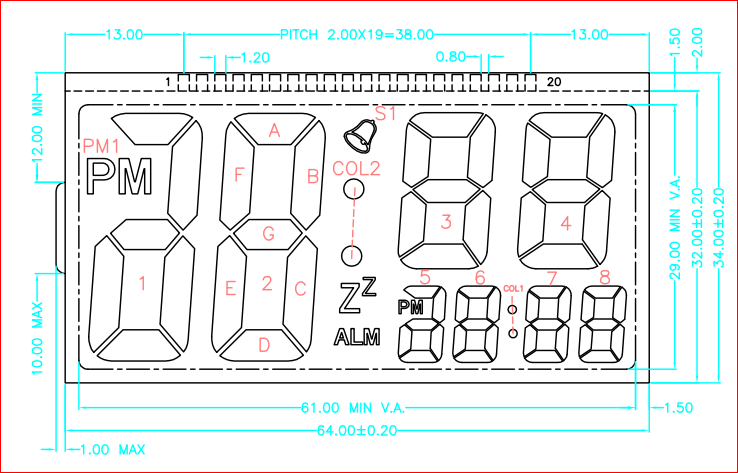

LCD Drawing
FAQ
1.Can you send me your catalogue?
Yes. Please contact us; we can share with you our catalog by dropbox.
2.What is your price and discount?
The above price is our wholesale price. If you'd like to know more our discount policy,please feel free to contact us.
3.What is your pilicy of warranty?
We provide 1 year's warranty for our product.
4.What is your packing way?
Neutral packing and accept customer's special packaging demand. We can make an invoice as you want to help you save money.
