Polygon Reflective Segment LCD Display
Description
The ENH-SS912089-01 solves your entire front panel requirements in one simple, proven device.
The ENH-SS912089-01 segment LCD can also reset your system as well as power it on and off using its ATX power supply control functionality. This way the ENH-SS912089-01 can replace the ubiquitous power and reset switches while cleaning up the front panel design and simplifying your BOM and assembly.

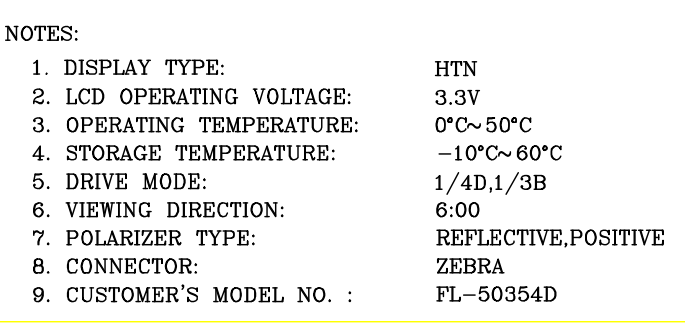

Key Features
|
Polygon Reflective Segment LCD Display |
|
|
Outline Size |
36.7*40.7 mm |
|
Viewing Area |
33.7*33.7 mm |
|
VDD |
3.3V |
|
Connector |
ZEBRA |
|
Backlight |
WLED |
|
Display Mode |
HTN, Reflective, Positive |
|
Viewing Angle |
6:00 |
|
Drive Method |
1/4 duty, 1/3 bias |
|
Top |
0℃ To + 50℃ |
|
Tst |
-10℃ To + 60℃ |
|
RoHS Compliant |
Yes |
|
Please contact us for datasheet and programming. |
|

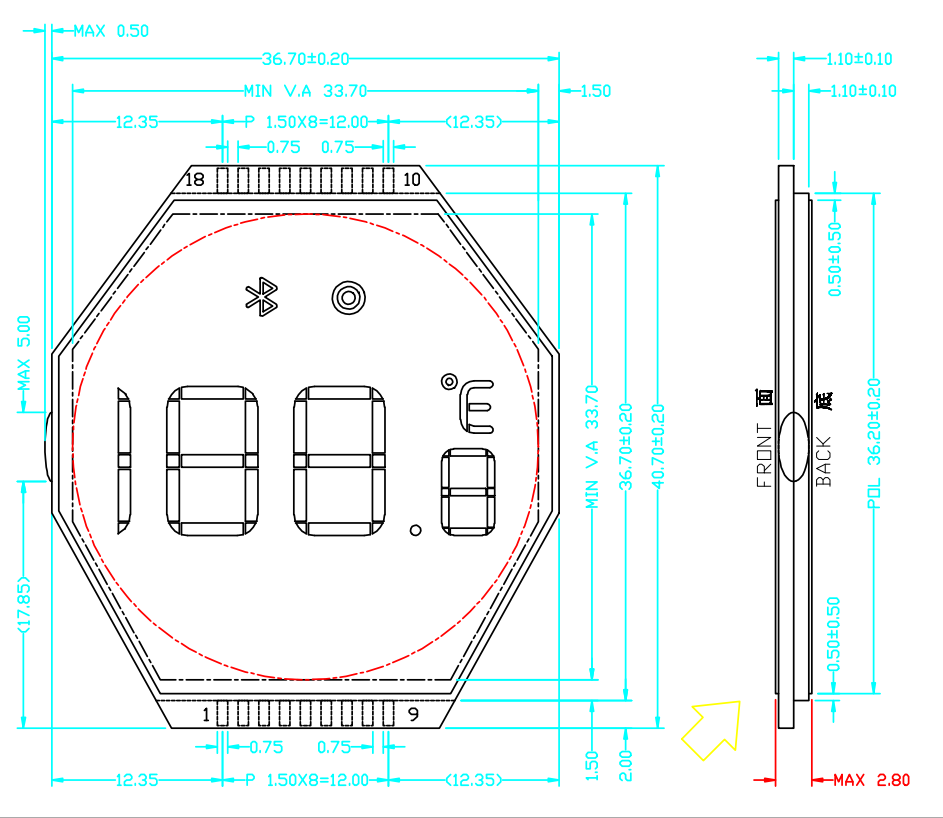

LCD Drawing

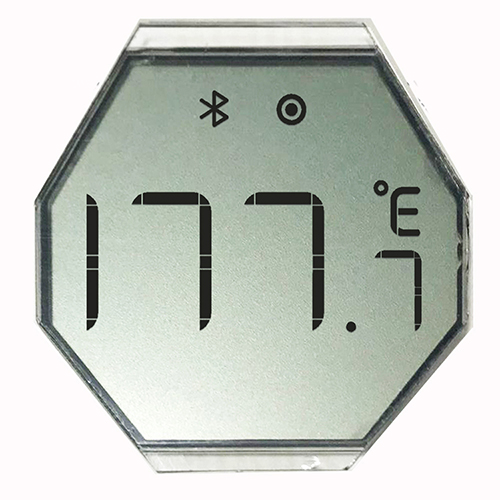

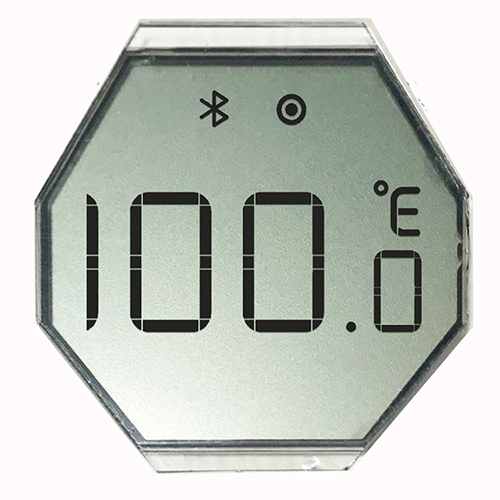

Image Details
FAQ
--What should I do if I receive a wrong part?
First, please make sure the part you purchase is the one what you need. If you do receive the damaged part because of the mistake on our side, please contact with us, we will assist you to replace the correct one for you.
--How long can I get reply after sending inquiry?
We will reply to you within 24 hours.
