128x64 Resolution LCD Displays
Description

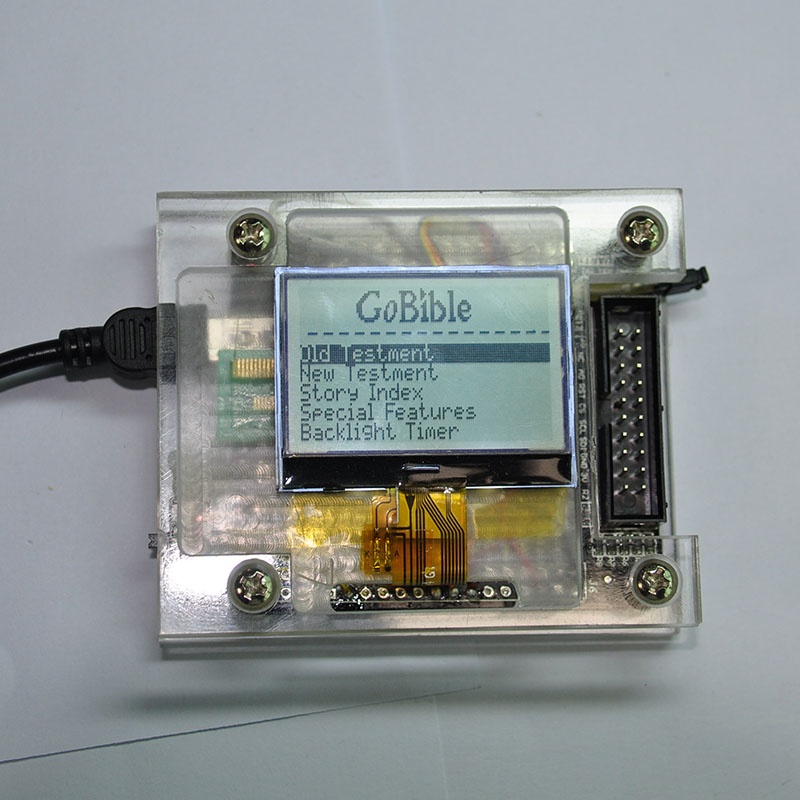

ENH-DG128064-34 is a 1.65 inch 128x64 COG monochrome Graphic LCD module. This LCD module is built in with ST7567 controller IC. This LCD module can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃. This LCD COG 128x64 display is very suitable for the applications that demand more compact package displays.
Specification
128x64 Resolution LCD Displays |
|
Resolution |
128*64 |
Outline Size |
42*31.6 mm |
Viewing Area |
38*24.3 mm |
Active Area |
35.436*22.38 mm |
Connector |
COG+FPC |
Driver IC |
ST7567 |
Backlight |
2 WLED |
Display Mode |
FSTN, Tranflective, Positive |
Viewing Angle |
12:00 |
Drive Method |
1/64 duty, 1/9 bias |
Top |
-20℃ TO + 70℃ |
Tst |
-30℃ To + 80℃ |
RoHS Compliant |
Yes |

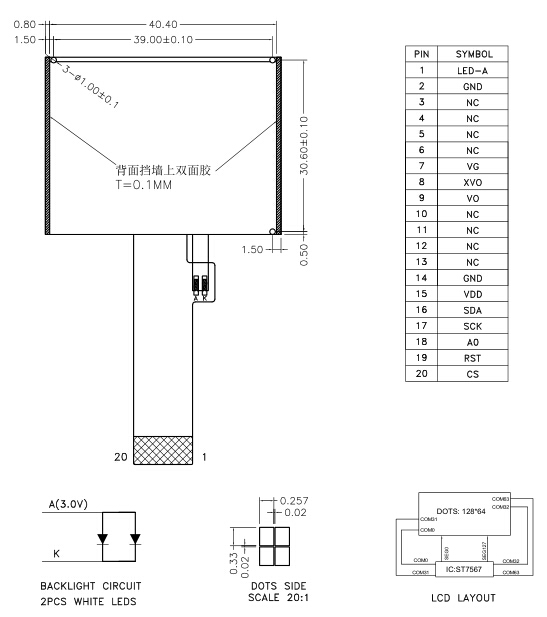

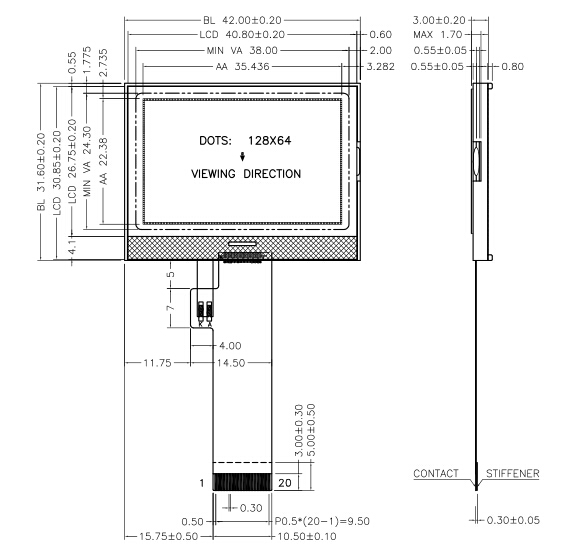

LCD Drawing
