212*64 Chinese LCD Display Module
Description
This ENH-DG212064-01-YFPHGF COG LCD modules (Chip-on-Glass LCD Module) monochrome display provides graphic type in resolution of 212x64.
Specification
|
212*64 Chinese LCD Display Module |
|
|
Resolution |
212*64 |
|
Outline Size |
124*45.5 mm |
|
Viewing Area |
108*35 mm |
|
Active Area |
101.74*30.7 mm |
|
Connector |
COG+FPC |
|
Driver IC |
UC1611S(16Gray) |
|
Backlight |
WLED |
|
Display Mode |
FSTN, Transflective, Positive |
|
Viewing Angle |
6:00 |
|
Drive Method |
1/64 duty, 1/9 bias |
|
Top |
-20℃ TO + 70℃ |
|
Tst |
-30℃ To + 80℃ |
|
RoHS Compliant |
Yes |

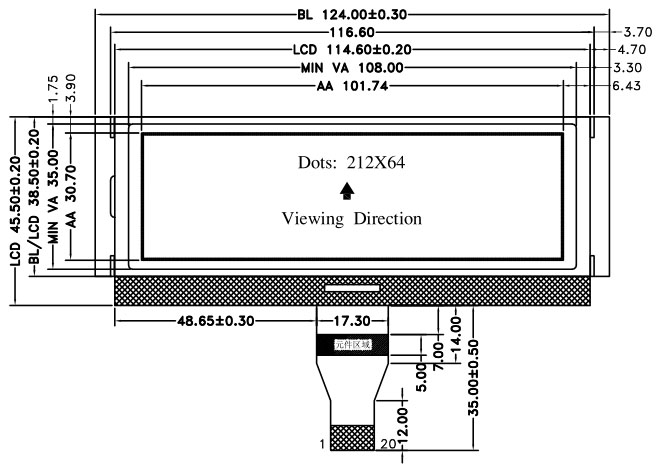

LCD Drawing
Description
This ENH-DG212064-01-YFPHGF COG LCD modules (Chip-on-Glass LCD Module) monochrome display provides graphic type in resolution of 212x64.
Specification
|
212*64 Chinese LCD Display Module |
|
|
Resolution |
212*64 |
|
Outline Size |
124*45.5 mm |
|
Viewing Area |
108*35 mm |
|
Active Area |
101.74*30.7 mm |
|
Connector |
COG+FPC |
|
Driver IC |
UC1611S(16Gray) |
|
Backlight |
WLED |
|
Display Mode |
FSTN, Transflective, Positive |
|
Viewing Angle |
6:00 |
|
Drive Method |
1/64 duty, 1/9 bias |
|
Top |
-20℃ TO + 70℃ |
|
Tst |
-30℃ To + 80℃ |
|
RoHS Compliant |
Yes |
LCD Drawing

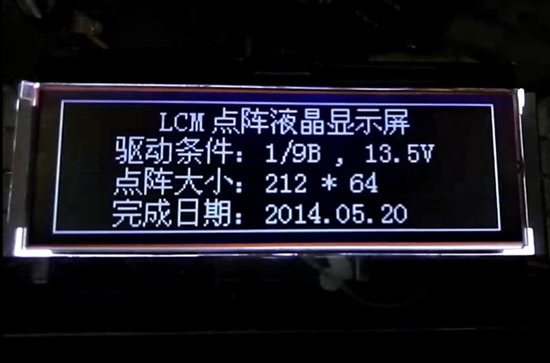

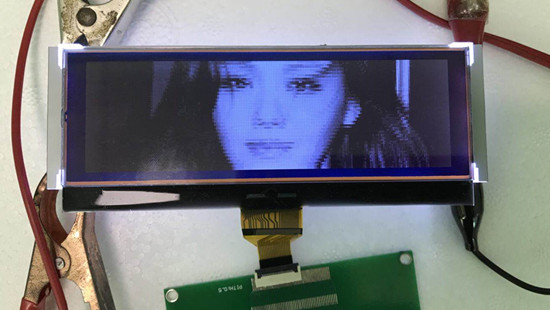

LCD Images
Applications
Telecommunication Devices: Telephone, interphone, watch, tablet PC, radio, etc.
Consumer Products: Camera, DVD player, toy, Cell Phone, game player, etc.
Technical Equipment: Elevator controller, Industrial machine, etc.
Office Automation: Printer,scanner, attendance machine, fax machine, etc.
Home Appliances: Air-condition display, refrigerator, electric cooker, video doorbell, etc.
